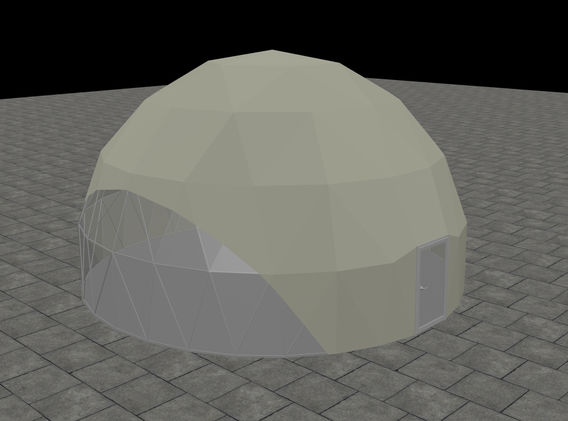

15m Geodesic Dome
Geodesic Dome style house
Floor Area: 1,962.5 sq.ft. (182.3 sq.meters)
Ceiling Center Height: 24.5 ft. (7.5 meters)
Approx. Dome Weight: 7,150 lbs. (2,563 kg.)
Frame Package: Pallet 1: 69″ x 43″ x 36″ (1.75 x 1 x .9 meters)
Cover Package: Pallet 2: 68″ x 43″ x 28″ (1.7 x 1 x .7 meters)
Cover Package:
Pallet 1: 48″ x 48″ x 48″ (1.75 x 1.0 x .9 meters)
Dimensions
Engineering
No. of Struts: 555
Frequency: 6
Max Wind w/ No Snow: 100mph
Max Snow w/ Wind Load: 20lbs @130mph
Capacity
Standing: 300 people
Row Seating: 200 people
Buffet Dinner: 170 people
Round & Stand Up Tables: 150 people
Assembly
Assembly Time: 12 hours with crew of 3 or 4
Required Equipment: 8 k Reach Fork with 44′ min boom, 2 x 8′ A-Frame, 20′ Electric Scissor, Jackhammer
Customisations
1,150.00
Logo & graphics printing
Bay Windows
Removable Roof: Zip-off
Round Windows: 2ft. (.6 meter) diameter
Extra Doors
Round doors & placement choices
Prehung doors & placement choices
Heating & cooling
Connecting 2 or more domes
